Graphic Waveform Compliance: What Signals Reduced Lung Ease

Understanding lung compliance

A decrease in compliance shows up as higher pressure to move the same breath size. That is the quick answer for most ventilated breaths. Lung compliance means how easily lung tissue expands with each breath.

When compliance is low, the lungs feel stiff. More push is needed to reach the same tidal volume. This can happen with fluid in the lung or with areas that do not open well.

You can not watch compliance directly on most units. So you use ventilator waveforms to infer it. This lung compliance analysis uses pressure, flow, and volume trends.

Why compliance changes show up on ventilator waveforms

Compliance links pressure and volume during a breath. If compliance drops, the pressure curve often rises. The same volume can still be reached if the ventilator keeps its target.

A key idea is simple. For the same tidal volume, less stretch means more pressure. That pattern often shows on pressure-time waveforms.

Waveforms are visual maps of what the ventilator measures. Pressure shows airway force across the cycle. Flow shows how fast gas moves. Volume shows how much gas enters the lung over time.

Common types of ventilator waveforms to know

Different plots highlight different parts of lung behavior. Many screens show pressure, flow, and volume at the same time. You can switch views to match your question.

Common waveform types include these scalars. Each one helps with respiratory mechanics clues.

• Pressure-time waveform: shows airway pressure through the breath.
• Flow-time waveform: shows gas flow in and out.
• Volume-time waveform: shows delivered volume over the cycle.

To interpret a ventilator waveforms compliance trend, compare breaths under stable settings. If the team changed tidal volume or flow, waveform shifts may be expected.

How to identify a decrease in compliance on the screen

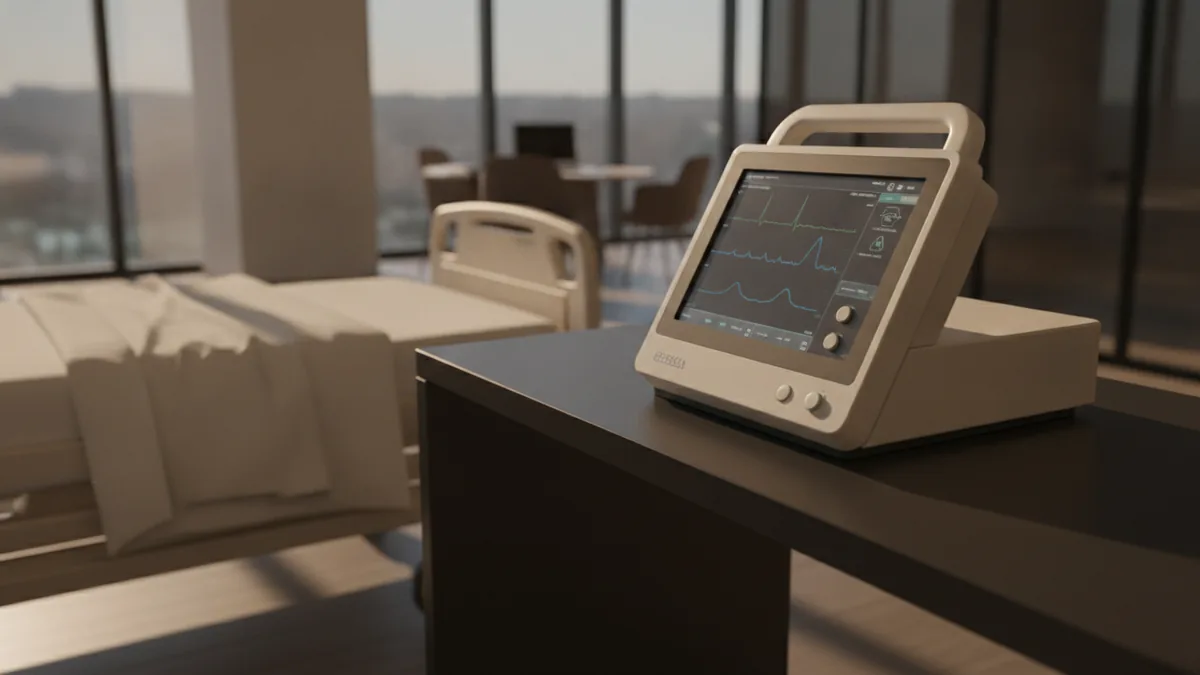

Start with a trend check. Look at about 5 to 10 breaths. Do not trust one breath alone.

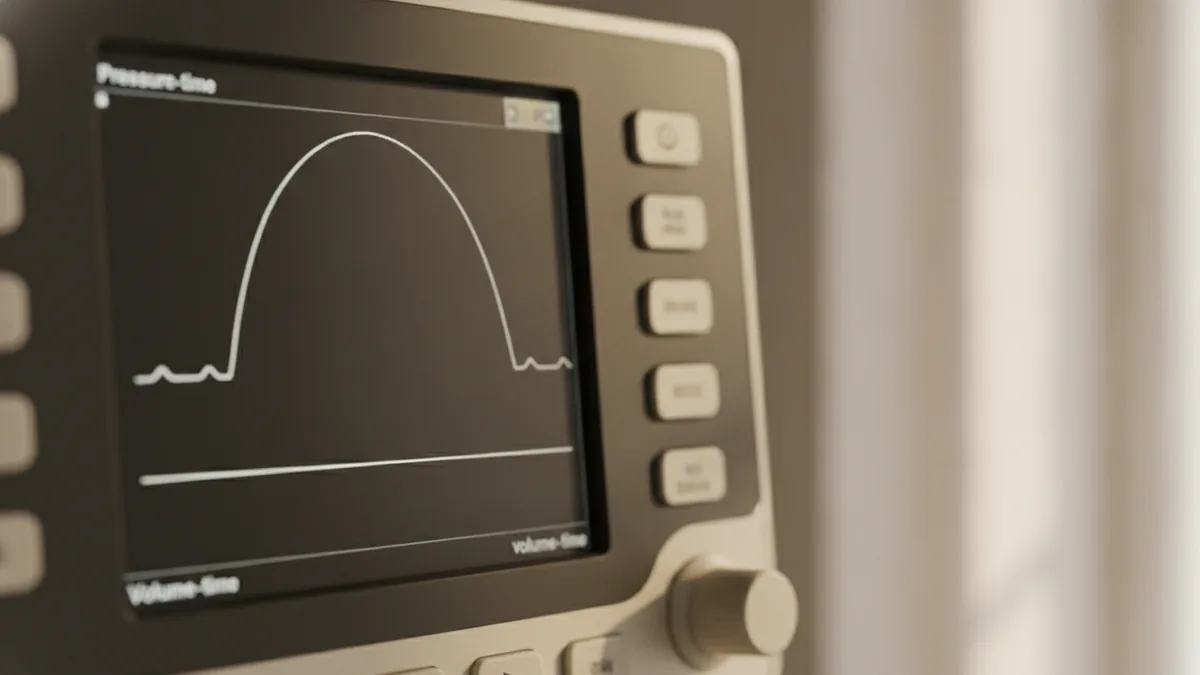

Next, check if tidal volume stays near the target. If volume stays similar, focus on pressure. A classic decrease in compliance waveform pattern shows pressure rise with steady volume.

Then compare pressure-time and volume-time plots. You often see a steeper pressure rise during inspiration. The volume-time line can stay almost flat compared with prior breaths.

Use this bedside workflow to narrow the cause fast:

1. Confirm settings stayed the same for the period you compare.
2. Check volume-time for stable tidal volume delivery.
3. Inspect pressure-time for a higher peak or steeper rise.
4. Review flow-time for big pattern shifts or slow emptying.

Here is a simple example. If tidal volume stays near 6 mL/kg, peak pressure may jump. A rise from 22 to 30 cm H2O can fit a compliance drop. This is especially true if the volume trace stays steady.

Interpreting graphic patterns beyond compliance

Not every pressure rise means lower compliance. Airway resistance can also raise pressure. Also, air trapping can change expiratory flow and pressure.

So you match the pattern to a likely cause. Compliance mainly changes how much pressure is needed for inflation. Resistance mainly changes how flow moves through airways.

Air trapping is a common confounder. It can happen when the patient cannot fully exhale. In that case, expiratory flow may not return to baseline quickly.

Use pattern clues like these:

Waveform pattern	More likely cause	Fast check
Pressure-time rises while volume-time stays steady	Lower compliance	Verify tidal volume target is met
Flow-time shape changes with pressure shifts	Higher airway resistance	Check tube patency and suction needs
Slow or incomplete exhale on flow-time	Air trapping	Review breath rate and exhale time
Spiky or irregular pressure with effort signs	Patient-ventilator mismatch	Check sync and trigger behavior

Patient-ventilator interaction can distort the traces. You may see breath timing that does not match the set cycle. If trigger settings are off, the flow and pressure shapes can look abnormal.

Ventilator settings also matter. A new inspiratory flow or different rise time can change flow-time shape. That can hide or mimic a compliance trend. Always re-check what changed before blaming compliance.

Clinical significance of waveform analysis during ventilation

Waveform review matters because it can show harm risk early. A falling compliance can mean more stress on lung tissue. That can raise risk of ventilator-induced lung injury.

When you see a likely compliance drop, act with a small plan. First, verify the delivered tidal volume. Next, check for tube issues, secretions, and lung opening problems.

Then ask what fits the timing. Did a suction event happen? Did the team change ventilator settings? Did the patient’s effort change after a med dose? These clues help link cause to trace.

Finally, watch the response. If you adjust care and compliance improves, pressure may fall for the same volume. That confirms your read more than any single view.

Quick takeaway

A decrease in compliance waveform often shows higher pressure-time values with steady volume-time delivery. Flow and exhale shape help sort out resistance and air trapping.

Frequently asked questions

Q: What graphic waveform indicates a decrease in compliance during mechanical ventilation?

A: A pressure-time rise with a steady volume-time trace often signals decreased compliance.

Q: How does a decrease in compliance change ventilator waveforms?

A: It raises the push needed to reach the same tidal volume, so pressure goes up.

Q: Can increased airway resistance look like decreased compliance?

A: Yes. It can also raise pressure. But it often changes flow-time shape more strongly than volume-time.

Q: What should I check before calling it a compliance drop?

A: First, confirm settings did not change. Then check that tidal volume delivery matches the target.

Q: How does air trapping affect graphic waveforms?

A: It can slow exhale and keep flow from dropping to baseline. That can raise pressure even if compliance is unchanged.

Q: Why does patient effort matter for waveform reading?

A: Asynchrony can distort pressure and flow shapes. Check sync before you blame lung stiffness.
